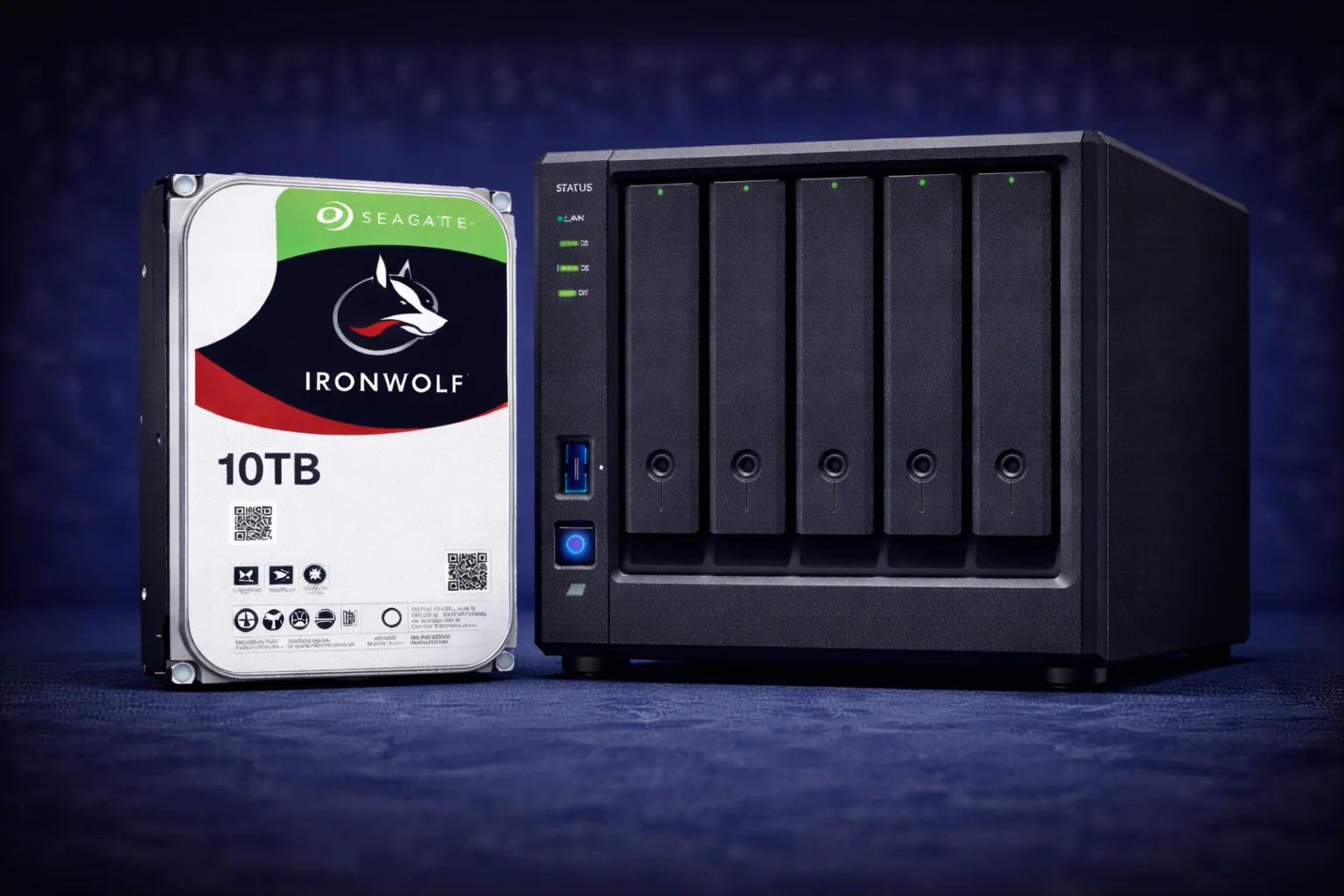

Quick Answer: The Seagate IronWolf 10TB occupies the middle ground between the popular 8TB and value-leading 12TB capacities. Standard IronWolf 10TB (~$185, ~$18.50/TB) offers decent value but is often overlooked since 12TB provides better $/TB at only ~$25 more. IronWolf Pro 10TB (~$260, ~$26/TB) adds 5-year warranty and Rescue service. The 10TB makes sense when: you need more than 8TB but can’t quite afford 12TB, or when 10TB drives are on sale bringing $/TB below 12TB. Otherwise, we recommend 8TB for budget builds or 12TB for maximum value.
The 10TB capacity sits in an interesting position within Seagate’s IronWolf lineup. It’s sandwiched between the sweet-spot 8TB (our default recommendation) and the best-value 12TB (lowest $/TB). This makes the 10TB a niche choice—not quite budget-friendly enough to compete with 8TB, yet not offering the stellar $/TB of 12TB.
That said, the IronWolf 10TB has its place. This comprehensive guide covers complete specifications, pricing analysis, when 10TB makes sense over neighboring capacities, and how to decide if it’s right for your NAS build.
IronWolf 10TB Complete Specifications
| Specification | IronWolf 10TB | IronWolf Pro 10TB |
|---|---|---|
| Model Number | ST10000VN000 | ST10000NT001 |
| Capacity | 10TB (10,000 GB) | 10TB (10,000 GB) |
| Interface | SATA 6Gb/s | SATA 6Gb/s |
| Form Factor | 3.5-inch | 3.5-inch |
| RPM | 7,200 | 7,200 |
| Cache | 256MB | 256MB |
| Sustained Transfer Rate | 210 MB/s | 240 MB/s |
| Workload Rating | 180 TB/year | 300 TB/year |
| MTBF | 1,000,000 hours | 1,200,000 hours |
| Warranty | 3 years | 5 years |
| Rescue Service | Optional add-on | Included (3 years) |
| Max Bays Supported | 1-8 bays | 1-24 bays |
| Recording Technology | CMR | CMR |
| Rotational Vibration Sensors | Yes | Yes (enhanced) |
| IronWolf Health Management | Yes | Yes |
| Power Consumption (Idle) | 4.7W | 5.0W |
| Power Consumption (Operating) | 7.3W | 7.8W |
| Noise (Idle) | 20 dB | 20 dB |
| Noise (Seek) | 27 dB | 28 dB |
| Operating Temperature | 0-70°C | 5-60°C |
| Dimensions | 26.1mm x 101.85mm x 146.99mm | 26.1mm x 101.85mm x 146.99mm |
| Weight | ~720g | ~720g |
| Price | ~$185 | ~$260 |
| Price per TB | ~$18.50/TB | ~$26.00/TB |
Key specification highlights:
- Same RPM and cache as neighbors: Both 10TB models run at 7,200 RPM with 256MB cache—identical to 8TB and 12TB
- CMR technology: Conventional Magnetic Recording ensures NAS reliability
- Quiet operation: 20dB idle is barely audible
- Full IHM support: IronWolf Health Management on Synology, QNAP, ASUSTOR
- Mid-range pricing: Falls between 8TB and 12TB as expected
Current IronWolf 10TB Pricing
Live pricing for all IronWolf 10TB variants:
| Product | Capacity | Price | $ / TB | Price Drop | Brand | Interface |
|---|
The 10TB Value Question: Where Does It Fit?
Understanding the 10TB’s position requires looking at the complete $/TB picture:
| Capacity | Price | $/TB | vs 10TB | Value Rating |
|---|---|---|---|---|
| 4TB | ~$95 | $23.75 | +28% worse | ⭐⭐ Entry |
| 8TB | ~$160 | $20.00 | +8% worse | ⭐⭐⭐⭐ Great |
| 10TB | ~$185 | $18.50 | Baseline | ⭐⭐⭐ Good |
| 12TB | ~$210 | $17.50 | -5% better | ⭐⭐⭐⭐⭐ Best |
| 16TB | ~$290 | $18.13 | -2% better | ⭐⭐⭐⭐ Great |
| 18TB | ~$330 | $18.33 | -1% better | ⭐⭐⭐⭐ Great |
The 10TB dilemma: At ~$18.50/TB, the 10TB offers better value than 8TB (~$20/TB) but worse than 12TB (~$17.50/TB). For just ~$25 more, you can get 12TB with 20% more capacity and 5% better $/TB. This is why 10TB is often skipped.
When 10TB Makes Sense
Despite the value math favoring 12TB, there are legitimate scenarios for choosing 10TB:
- Sale pricing: When 10TB drops below ~$175 (~$17.50/TB), it matches 12TB value
- Exact capacity need: You need ~9TB usable (RAID 1) and 12TB is overkill
- Budget gap: Have exactly ~$370 for 2 drives—10TB fits, 12TB doesn’t
- Availability: 10TB in stock when 8TB and 12TB are sold out
- Matching existing array: You already have 10TB drives and want consistency
IronWolf 10TB vs IronWolf Pro 10TB
Standard IronWolf 10TB
Choose the standard IronWolf 10TB if:
- Home NAS use: Plex, file storage, backups, photo libraries
- 1-8 bay systems: All typical home NAS configurations
- Workload under 180TB/year: Home use is typically 20-50TB/year
- Budget priority: Save ~$75 per drive vs Pro
- 3-year warranty sufficient: Covers critical early failure period
Seagate IronWolf 10TB
10TB | 7200 RPM | 256MB Cache | CMR | 180TB/yr | 3-Year Warranty
Mid-range capacity between 8TB and 12TB. Solid choice when on sale or when you need exactly this capacity. Consider 12TB for better $/TB if budget allows, or 8TB if you want lower total cost.
IronWolf Pro 10TB
Choose the IronWolf Pro 10TB if:
- Business/SMB environment: Where 5-year warranty matters
- Heavy workloads: Approaching or exceeding 180TB/year
- 8+ bay systems: Enhanced RV sensors for large arrays
- Want Rescue service: Data recovery insurance included
- Matching existing Pro array: Consistency in drive specs
Seagate IronWolf Pro 10TB
10TB | 7200 RPM | 256MB Cache | CMR | 300TB/yr | 5-Year Warranty | Rescue Included
Pro features at 10TB capacity. 5-year warranty and Rescue service for business use. Consider Pro 12TB (~$290) for better value if stepping up to Pro tier—only $30 more for 20% more capacity.
Pro tip: If you’ve decided on Pro, the 12TB Pro (~$290) offers significantly better value than 10TB Pro (~$260)—20% more capacity for just ~$30 more.
For complete tier comparison: IronWolf vs IronWolf Pro Detailed Guide
10TB Storage Capacity Analysis
What Can You Store on 10TB?
- 4K Movies (50GB): ~200 films
- 1080p Movies (10GB): ~1,000 films
- 720p/SD Movies (4GB): ~2,500 films
- RAW Photos (25MB): ~400,000 images
- JPEG Photos (5MB): ~2 million images
- FLAC Music (50MB): ~200,000 songs
- MP3 Music (5MB): ~2 million songs
- PC Backups (500GB): ~20 complete backups
- 4K Video Projects (100GB/hr): ~100 hours raw footage
RAID Usable Capacity with 10TB Drives
Using our RAID Calculator:
| Configuration | Raw Capacity | RAID Type | Usable Capacity | Fault Tolerance |
|---|---|---|---|---|
| 2x 10TB | 20TB | RAID 1 / SHR | ~9.1TB | 1 drive |
| 3x 10TB | 30TB | RAID 5 | ~18.2TB | 1 drive |
| 4x 10TB | 40TB | RAID 5 / SHR | ~27.3TB | 1 drive |
| 4x 10TB | 40TB | RAID 6 / SHR-2 | ~18.2TB | 2 drives |
| 4x 10TB | 40TB | RAID 10 | ~18.2TB | 1 per mirror |
| 6x 10TB | 60TB | RAID 5 | ~45.4TB | 1 drive |
| 6x 10TB | 60TB | RAID 6 | ~36.3TB | 2 drives |
| 8x 10TB | 80TB | RAID 6 | ~54.5TB | 2 drives |
Notable: 2x 10TB in RAID 1 gives ~9.1TB usable—a nice middle ground between 8TB’s ~7.3TB and 12TB’s ~10.9TB.
For RAID planning: Synology RAID Guide | SHR Explained | SHR vs RAID 5
10TB vs Neighboring Capacities: Detailed Comparison
10TB vs 8TB
| Factor | 8TB | 10TB | Winner |
|---|---|---|---|
| Price | ~$160 | ~$185 | 8TB (-$25) |
| $/TB | ~$20.00 | ~$18.50 | 10TB (8% better) |
| 2-drive usable (RAID 1) | ~7.3TB | ~9.1TB | 10TB (+25%) |
| 2-drive total cost | ~$320 | ~$370 | 8TB (-$50) |
| 4-drive usable (RAID 5) | ~21.8TB | ~27.3TB | 10TB (+25%) |
| 4-drive total cost | ~$640 | ~$740 | 8TB (-$100) |
| Availability | Excellent | Good | 8TB |
Verdict: 10TB offers 8% better $/TB and 25% more capacity for ~$25-50 more per drive pair. If you’re considering 10TB over 8TB and budget allows, the math actually favors going all the way to 12TB for even better value.
10TB vs 12TB — The Critical Comparison
| Factor | 10TB | 12TB | Winner |
|---|---|---|---|
| Price | ~$185 | ~$210 | 10TB (-$25) |
| $/TB | ~$18.50 | ~$17.50 | 12TB (5% better) |
| 2-drive usable (RAID 1) | ~9.1TB | ~10.9TB | 12TB (+20%) |
| 2-drive total cost | ~$370 | ~$420 | 10TB (-$50) |
| 4-drive usable (RAID 5) | ~27.3TB | ~32.7TB | 12TB (+20%) |
| 4-drive total cost | ~$740 | ~$840 | 10TB (-$100) |
| Value rating | Good | Best | 12TB |
Verdict: This is the key comparison. For ~$25 more per drive, 12TB delivers 5% better $/TB and 20% more capacity. Unless budget is extremely tight or 10TB is on significant sale, 12TB is the smarter buy. The 12TB offers the best $/TB in the entire IronWolf lineup.
10TB vs 16TB
| Factor | 10TB | 16TB | Winner |
|---|---|---|---|
| Price | ~$185 | ~$290 | 10TB (-$105) |
| $/TB | ~$18.50 | ~$18.13 | 16TB (2% better) |
| 2-drive usable (RAID 1) | ~9.1TB | ~14.5TB | 16TB (+59%) |
| 2-drive total cost | ~$370 | ~$580 | 10TB (-$210) |
Verdict: 16TB offers marginally better $/TB but significantly higher absolute cost. Choose 16TB if you need maximum capacity per bay; choose 10TB (or better, 12TB) if you want to minimize initial investment.
Best Use Cases for IronWolf 10TB
🎬 Growing Plex Media Server
For Plex users who’ve outgrown 8TB but aren’t ready for 12TB investment:
- 2x 10TB in RAID 1: ~9.1TB for ~900 1080p movies or ~180 4K movies
- 4x 10TB in RAID 5: ~27.3TB for extensive mixed libraries
- 7,200 RPM ensures smooth multi-stream playback
- Quiet enough for living room NAS placement
Recommended NAS:DS224+ for 2-bay or DS423+ for 4-bay builds. See: Best Synology NAS for Plex
🏠 Home File Server & Family Backup
For households with moderate storage needs:
- ~9.1TB usable (RAID 1) handles multiple PC backups
- Room for family photo libraries via Synology Photos
- Document storage and Synology Drive sync
- Offsite backup via Hyper Backup
📸 Photography Archive
For enthusiast photographers with growing collections:
- ~9.1TB usable = ~364,000 RAW images (25MB average)
- Years of shooting with room for Lightroom catalogs
- Space for processed exports and client deliverables
💼 Small Business File Sharing
For small teams with moderate storage requirements:
- Consider IronWolf Pro 10TB for 5-year warranty
- ~27.3TB usable (4x RAID 5) handles years of business documents
- Rescue service provides data recovery insurance
💰 Sale/Deal Hunters
The 10TB’s best use case is when pricing favors it:
- Watch for sales dropping 10TB below ~$175
- At ~$17.50/TB, 10TB matches 12TB value with lower total cost
- Clearance sales when new models launch
- Bundle deals with NAS enclosures
Best NAS Systems for 10TB Drives
2-Bay NAS with 10TB Drives
Configuration: 2x IronWolf 10TB = 20TB raw, ~9.1TB usable (RAID 1)
Total drive cost: ~$370
- Synology DS224+ (~$340) — Best 2-bay, Intel Celeron J4125 for transcoding
- Synology DS223 (~$230) — Budget ARM option
- QNAP TS-253E (~$350) — Intel N5105, 2.5GbE
Total system cost: $600-720 with drives
4-Bay NAS with 10TB Drives
Configuration: 4x IronWolf 10TB = 40TB raw, ~27.3TB usable (RAID 5/SHR)
Total drive cost: ~$740
- Synology DS423+ (~$500) — Best value 4-bay
- Synology DS923+ (~$600) — AMD Ryzen, expandable to 9 bays
- QNAP TS-464 (~$550) — Intel N5105, dual 2.5GbE
Total system cost: $1,240-1,340 with drives
6+ Bay NAS with 10TB Drives
Configuration: 6x IronWolf Pro 10TB = 60TB raw, ~45.4TB usable (RAID 5)
Total drive cost: ~$1,560 (Pro recommended for 6+ bays)
- Synology DS1621+ (~$800) — 6-bay, expandable to 16
- Synology DS1821+ (~$950) — 8-bay powerhouse
Note: For 6+ bay systems, strongly consider 12TB Pro instead—better $/TB at scale.
IronWolf 10TB vs Competitors
| Drive | Price | $/TB | RPM | Cache | Warranty | Notes |
|---|---|---|---|---|---|---|
| IronWolf 10TB | ~$185 | $18.50 | 7,200 | 256MB | 3 years | IHM, mid-range |
| IronWolf Pro 10TB | ~$260 | $26.00 | 7,200 | 256MB | 5 years | Rescue included |
| WD Red Plus 10TB | ~$195 | $19.50 | 7,200 | 256MB | 3 years | Similar specs |
| WD Red Pro 10TB | ~$250 | $25.00 | 7,200 | 256MB | 5 years | No Rescue |
| Toshiba N300 10TB | ~$200 | $20.00 | 7,200 | 256MB | 3 years | Good alternative |
| Exos X16 10TB | ~$160 | $16.00 | 7,200 | 256MB | 5 years | Best value, louder |
| WD Ultrastar 10TB | ~$150 | $15.00 | 7,200 | 256MB | 5 years | Enterprise, loud |
Key competitive insights:
- Best NAS-specific at 10TB: IronWolf 10TB for IHM and quiet operation
- Best absolute value:Exos X16 10TB at ~$16/TB if noise isn’t a concern
- WD alternative: Red Plus 10TB is comparable but slightly pricier
- Enterprise option: Ultrastar offers lowest $/TB but louder operation
Detailed comparisons: IronWolf vs WD Red | IronWolf vs Exos
NAS Compatibility
Synology Compatibility
IronWolf 10TB is on Synology’s official compatibility list with full IronWolf Health Management (IHM) support in DSM. Compatible with all DiskStation and RackStation models:
See: Complete IronWolf Synology Compatibility Guide | All Synology Compatible Drives
QNAP Compatibility
Full compatibility with all QNAP NAS devices. IronWolf Health Management supported in QTS:
- TS-253E, TS-264 (2-bay)
- TS-464, TS-473A (4-bay)
- TS-673A, TS-873A (6-8 bay)
See: Complete IronWolf QNAP Compatibility Guide
Other NAS Brands
Compatible with ASUSTOR, TerraMaster, Drobo, and other NAS platforms. IHM support varies by manufacturer.
Frequently Asked Questions
It depends on pricing. At regular price (~$185), the 12TB (~$210) offers better $/TB for just $25 more. However, when 10TB is on sale below ~$175, it becomes competitive. The 10TB also makes sense if you need exactly that capacity or are matching existing drives.
For most users, 12TB is the better choice. It offers 5% better $/TB and 20% more capacity for only ~$25 more per drive. Choose 10TB only if budget is extremely tight, it’s on significant sale, or you specifically need ~9TB usable rather than ~11TB.
10TB offers 8% better $/TB and 25% more capacity for ~$25 more. If you’re considering stepping up from 8TB, the math actually favors going to 12TB instead—best $/TB in the lineup. Choose 8TB for lowest absolute cost; choose 12TB for best value.
Approximately 9.1TB usable. This falls between 8TB’s ~7.3TB and 12TB’s ~10.9TB. Enough for ~900 1080p movies or ~180 4K movies—solid capacity for growing media libraries.
Yes, the IronWolf 10TB works well for Plex. 7,200 RPM ensures smooth playback, and ~9.1TB usable (RAID 1) handles substantial media libraries. However, if budget allows, 12TB offers better long-term value for growing libraries.
Rarely at regular pricing. The Pro 10TB (~$260) is close to Pro 12TB (~$290)—for just $30 more, you get 20% more capacity. If you need Pro features, the 12TB or 16TB Pro offer much better value. Only consider Pro 10TB if matching existing drives.
Exos 10TB offers significantly better value: ~$160 vs ~$185, 5-year warranty, higher workload rating (550TB/yr). IronWolf 10TB is quieter with Health Management integration. Choose Exos for closet/basement NAS; IronWolf for living space.
CMR (Conventional Magnetic Recording). All IronWolf drives use CMR—Seagate has never used SMR in the IronWolf lineup. This ensures reliable write performance and safe RAID rebuilds essential for NAS use.
Conclusion
The Seagate IronWolf 10TB is a capable mid-range NAS drive that falls between the popular 8TB and value-leading 12TB capacities. While it offers solid performance and reliability, the value proposition is challenging at regular pricing.
Our recommendations:
- Best value: Skip to IronWolf 12TB for ~$25 more—5% better $/TB and 20% more capacity
- Lower budget:IronWolf 8TB saves ~$25 per drive
- Buy 10TB when: On sale below ~$175, exact capacity needed, or matching existing array
- Maximum value (noise OK):Exos 10TB at ~$160
- Business use: Consider Pro 12TB over Pro 10TB for better value
The 10TB isn’t a bad drive—it’s just positioned awkwardly between two more compelling options. Watch for sales, and if the price drops to match 12TB’s $/TB, it becomes an excellent choice.
Related Resources
- Seagate IronWolf Complete Guide
- Seagate IronWolf Pro Guide
- IronWolf vs IronWolf Pro
- IronWolf 8TB Guide
- IronWolf 12TB Guide
- IronWolf 16TB Guide
- IronWolf vs WD Red
- IronWolf vs Exos
- Synology Compatible Drives
- Best Synology NAS for Plex
- Best Synology NAS 2026
- RAID Calculator
Last Updated: February 2026
