Quick Answer+
SSD Compatibility Quick Check: Your SSD must match your system’s interface (SATA or NVMe), form factor (2.5″ or M.2), and physical slot type (B-key, M-key, or B+M key). Most compatibility issues occur when users buy an NVMe SSD for a SATA-only M.2 slot, or vice versa.
Key Takeaways:
– Check your slot first: M-key slots support NVMe; B-key slots are usually SATA-only
– PCIe is backwards compatible: Gen 5 SSDs work in Gen 3 slots (just slower)
– Form factor matters: 2280 is standard; laptops may require 2242 or 2230
– PS5 requires: PCIe Gen 4, 5,500+ MB/s read speed, heatsink under 11.25mm total height
– When in doubt: Check your motherboard manual or use Crucial’s System Scanner
Buying an SSD should be simple: pick your capacity, choose a reputable brand, and enjoy faster speeds. But every day, thousands of people discover their new SSD doesn’t work with their system — the drive doesn’t fit, isn’t detected, or runs at a fraction of its advertised speed.
The problem isn’t the SSD. It’s compatibility.
Unlike RAM (where you mainly worry about DDR generation and speed), SSDs have multiple compatibility layers: interface protocols, physical connectors, form factors, PCIe generations, and even height restrictions. Miss any one of these, and you’re stuck with a return or an expensive paperweight.
This guide eliminates the confusion. We’ll walk through every compatibility factor, show you exactly how to check what your system supports, and help you buy the right SSD the first time.

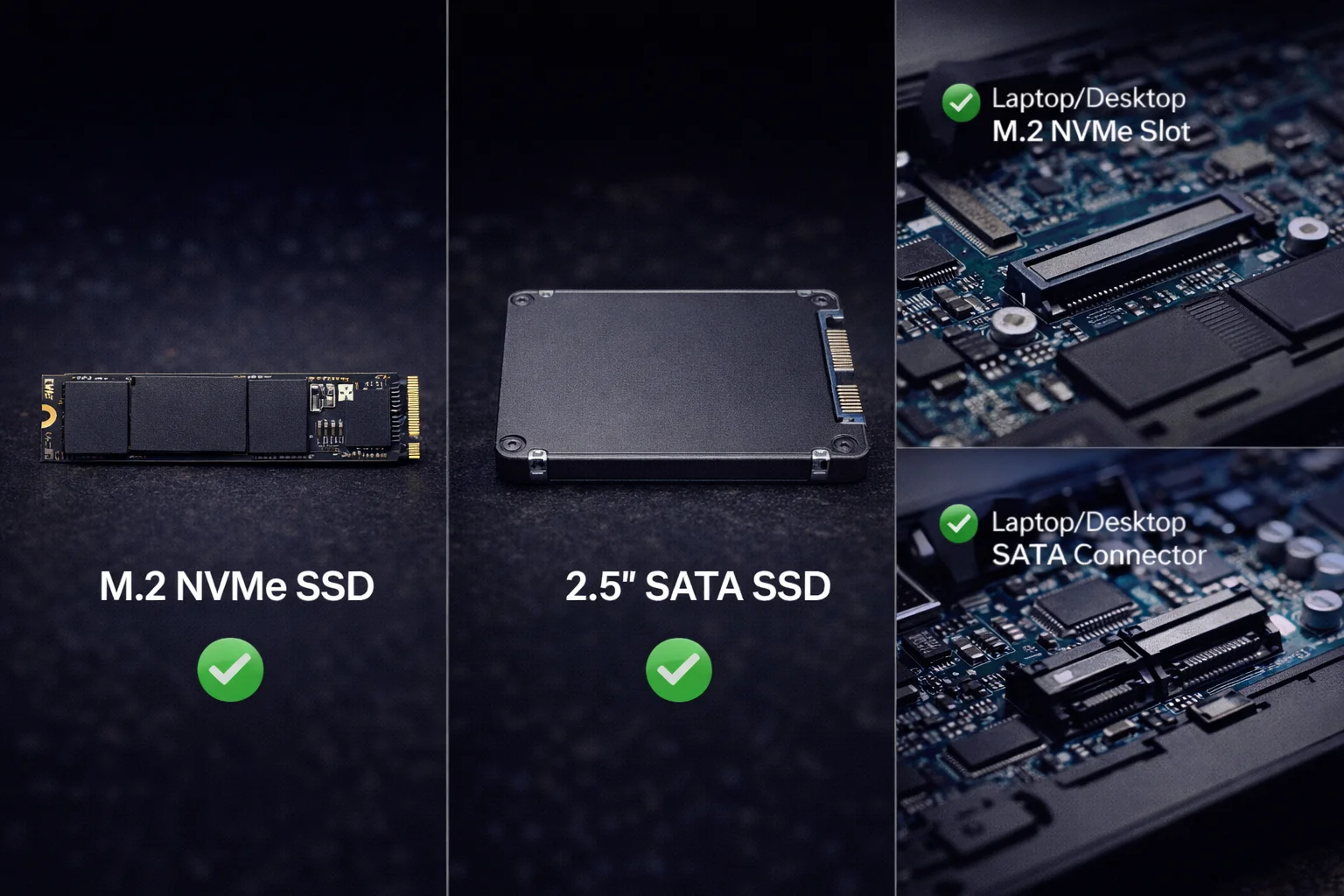

Understanding SSD Interfaces: SATA vs NVMe
The first and most critical compatibility factor is the interface — the protocol your SSD uses to communicate with your computer. There are two main interfaces, and they are fundamentally different.
SATA (Serial ATA)
SATA is the older standard, originally designed for hard drives in the early 2000s. It remains widely used today because of its universal compatibility with older systems.
SATA SSD Characteristics:
- Maximum theoretical speed: 600 MB/s (SATA III)
- Real-world speeds: 500-550 MB/s
- Available in 2.5″ and M.2 form factors
- Works with virtually any computer from 2008 onward
- Uses AHCI (Advanced Host Controller Interface) protocol
- Lower power consumption than NVMe
- Generally less expensive per GB
When to choose SATA: Upgrading an older laptop or desktop (pre-2015), your system doesn’t have an M.2 slot, budget is the primary concern, or you’re replacing an existing HDD in a 2.5″ bay.
NVMe (Non-Volatile Memory Express)
NVMe is a modern protocol designed specifically for flash storage. It connects through the PCIe (Peripheral Component Interconnect Express) bus, offering dramatically faster speeds.
NVMe SSD Characteristics:
- Maximum theoretical speeds: 3,500 MB/s (Gen 3), 7,500 MB/s (Gen 4), 14,000+ MB/s (Gen 5)
- Real-world speeds: 3,000-12,000+ MB/s depending on generation
- Primarily available in M.2 form factor
- Requires M.2 slot with PCIe support (M-key or B+M key with PCIe lanes)
- Lower latency than SATA (microseconds vs milliseconds)
- Higher power consumption under load
- Premium pricing, though gap has narrowed significantly
When to choose NVMe: Your motherboard has an M.2 slot with NVMe support, you want maximum performance for gaming, video editing, or large file transfers, building a new PC or upgrading a system from 2017 or later, or PS5 storage expansion.
The Critical Difference
Here’s where compatibility issues arise: SATA and NVMe are not interchangeable in most cases.
- An NVMe SSD will NOT work in a SATA-only M.2 slot
- A SATA M.2 SSD may not work in an NVMe-only M.2 slot
- Some M.2 slots support both protocols (check your motherboard manual)
The #1 SSD compatibility error: Buying an NVMe SSD for a laptop or motherboard that only supports M.2 SATA.
The SSD will physically fit (same connector shape), but your system won’t detect it. This happens because SATA and NVMe use completely different electrical signaling — it’s like plugging a USB-C cable into a port that only supports USB 2.0 speeds; it might fit, but it won’t work as expected.
Always verify your M.2 slot supports NVMe before buying an NVMe drive.
Interface Speed Comparison
| Interface | Max Speed | Typical Real-World | Best For |
|---|---|---|---|
| SATA III | 600 MB/s | 500-550 MB/s | Older systems, budget builds |
| NVMe Gen 3 | 3,940 MB/s | 2,500-3,500 MB/s | Most users, great value |
| NVMe Gen 4 | 7,880 MB/s | 5,000-7,000 MB/s | Enthusiasts, PS5, content creation |
| NVMe Gen 5 | 15,760 MB/s | 10,000-12,000 MB/s | Professional workloads, future-proofing |
Form Factors Explained: 2.5″, M.2, and Beyond
Form factor refers to the physical size and shape of the SSD. Using the wrong form factor means the drive simply won’t fit in your system.
2.5-Inch SATA SSDs
The 2.5″ form factor matches traditional laptop hard drives. These SSDs connect via SATA data and power cables.
- Dimensions: 100mm × 70mm × 7mm (standard)
- Connection: SATA data + SATA power connectors
- Interface: SATA only (no NVMe 2.5″ drives exist)
- Compatibility: Fits any 2.5″ drive bay, works in 3.5″ bays with adapter bracket
- Best for: Desktop upgrades, older laptops, external enclosures, NAS devices
M.2 SSDs
M.2 (formerly NGFF — Next Generation Form Factor) is a compact card that plugs directly into the motherboard. This is where most compatibility confusion occurs because M.2 is a form factor, not an interface.
M.2 SSDs can be either SATA or NVMe — and they look nearly identical.
M.2 Size Designations
M.2 sizes use a 4 or 5-digit code: the first two digits are width (always 22mm for consumer SSDs), and the remaining digits are length in millimeters.
| Size Code | Dimensions | Common Use |
|---|---|---|
| 2230 | 22mm × 30mm | Steam Deck, Surface Pro, some ultrabooks |
| 2242 | 22mm × 42mm | Some compact laptops |
| 2260 | 22mm × 60mm | Rare, some enterprise |
| 2280 | 22mm × 80mm | Standard for most PCs and laptops |
| 22110 | 22mm × 110mm | Enterprise, some high-end motherboards |
Check your M.2 slot for multiple screw holes. Most motherboards have standoff positions at 42mm, 60mm, and 80mm from the connector.
Your motherboard manual will specify supported lengths. When in doubt, 2280 is the safest choice — it’s compatible with 95%+ of M.2 slots.
Exception: Compact devices like Steam Deck and Microsoft Surface only accept 2230 SSDs.
Single-Sided vs Double-Sided M.2 SSDs
This is a critical but often overlooked compatibility factor, especially for laptops.
Single-sided SSDs: All NAND chips and controller are on one side of the PCB. These are thinner and fit in more systems.
Double-sided SSDs: NAND chips on both sides of the PCB. These are thicker and may not fit in laptops with limited clearance.
Why this matters: Many laptops, especially ultrabooks, have very tight clearance above and below the M.2 slot. A double-sided SSD may not fit physically, press against the bottom cover causing overheating, or damage the motherboard if forced.
Many laptops only accept single-sided M.2 SSDs. Double-sided drives (with chips on both sides) are thicker and may not fit, or may damage your laptop’s motherboard.
Single-sided drives: WD Black SN7100, Samsung 990 Pro (all capacities including 4TB), Samsung 990 EVO Plus, Crucial T500, most 1TB drives
Double-sided drives: Some 2TB+ drives from older generations, many 4TB drives
Always verify your laptop’s clearance before buying, especially for 2TB+ capacities.
M.2 Slot Types: B-Key, M-Key, and B+M Key
This is where SSD compatibility gets technical — and where most mistakes happen. M.2 slots and SSDs use a “keying” system that determines physical and electrical compatibility.
Understanding M.2 Keys
The “key” refers to the notch pattern on the M.2 connector. Different keys support different interfaces:
B-Key (Socket 2):
- Notch on the left side of the connector
- Supports: SATA, PCIe x2
- Does NOT support: PCIe x4 (full-speed NVMe)
- Common on: Older laptops, budget motherboards
M-Key (Socket 3):
- Notch on the right side of the connector
- Supports: PCIe x4 (NVMe), sometimes SATA
- Primary key for NVMe SSDs
- Common on: Modern desktops, gaming laptops
B+M Key:
- Notches on both left and right sides
- Supports: SATA, PCIe x2 (limited NVMe)
- Designed for maximum compatibility
- Common on: SATA M.2 SSDs (so they fit both B and M slots)
M.2 Key Compatibility Matrix
| SSD Key | B-Key Slot | M-Key Slot | B+M Key Slot |
|---|---|---|---|
| B-Key SSD | ✓ Works | ✗ Won’t fit | ✓ Works |
| M-Key SSD | ✗ Won’t fit | ✓ Works | ✗ Won’t fit |
| B+M Key SSD | ✓ Works | ✓ Works | ✓ Works |
If your SSD has one notch (M-key): It’s NVMe and needs an M-key slot with PCIe support.
If your SSD has two notches (B+M key): It’s likely SATA and will physically fit most slots — but verify your slot supports SATA.
Physical fit ≠ compatibility. A B+M keyed SATA SSD will fit an NVMe-only M-key slot but won’t be detected.
PCIe Generations: Gen 3 vs Gen 4 vs Gen 5 Compatibility
PCIe generations determine the maximum bandwidth available to your NVMe SSD. The good news: PCIe is fully backwards and forwards compatible.
PCIe Generation Speeds
| Generation | Bandwidth (x4) | Max SSD Speed | Released |
|---|---|---|---|
| PCIe 3.0 | ~4 GB/s | ~3,500 MB/s | 2010 |
| PCIe 4.0 | ~8 GB/s | ~7,500 MB/s | 2017 |
| PCIe 5.0 | ~16 GB/s | ~14,000 MB/s | 2019 |
Backwards Compatibility Explained
You can use a newer SSD in an older slot — it will just run at the slot’s maximum speed.
- Gen 5 SSD in Gen 4 slot → Runs at Gen 4 speeds (~7,500 MB/s max)
- Gen 5 SSD in Gen 3 slot → Runs at Gen 3 speeds (~3,500 MB/s max)
- Gen 4 SSD in Gen 3 slot → Runs at Gen 3 speeds (~3,500 MB/s max)
You can use an older SSD in a newer slot — it will run at the SSD’s maximum speed.
- Gen 3 SSD in Gen 5 slot → Runs at Gen 3 speeds (~3,500 MB/s max)
- Gen 4 SSD in Gen 5 slot → Runs at Gen 4 speeds (~7,500 MB/s max)
PCIe Generation Compatibility Matrix
| SSD Gen | Gen 3 Slot | Gen 4 Slot | Gen 5 Slot |
|---|---|---|---|
| Gen 3 SSD | Full speed | Full speed | Full speed |
| Gen 4 SSD | Gen 3 speed | Full speed | Full speed |
| Gen 5 SSD | Gen 3 speed | Gen 4 speed | Full speed |
Generally, no. You’ll pay a premium for Gen 5 but only get Gen 4 performance.
Exception: If you’re planning a system upgrade within 1-2 years, buying Gen 5 now means you won’t need to replace the SSD later.
Best value: Match your SSD generation to your system. Gen 4 SSDs offer excellent performance at reasonable prices and will serve most users for years.
How to Check Your System’s SSD Compatibility
Before buying an SSD, verify compatibility using these methods (in order of reliability):
Method 1: Check Your Manual (Most Reliable)
Your motherboard or laptop manual contains definitive compatibility information.
What to look for:
- Number of M.2 slots
- Supported M.2 sizes (2280, 2242, etc.)
- Interface support (SATA, NVMe, or both)
- PCIe generation and lanes (x2 or x4)
- Any slot-sharing configurations (some slots disable SATA ports when used)
Where to find manuals: Motherboard manufacturer website → Support → Downloads. Laptop manufacturer support page → Enter model number. Pre-built desktop: Search “[brand] [model] service manual”.
Method 2: Use Manufacturer Compatibility Tools
Crucial System Scanner (free, recommended):
- Go to crucial.com/store/systemscanner
- Download and run the scanner
- View compatible SSD and RAM upgrades
Other tools: Kingston SSD Manager (identifies current drive and compatible upgrades) and Samsung Magician (primarily for Samsung SSD management).
Method 3: Check Device Manager (Windows)
Identify current storage:
- Press Windows + X → Device Manager
- Expand “Disk drives”
- Note your current drive model
- Search that model online to find its specifications
- Your system supports at least that interface/form factor
Check for NVMe support:
- Expand “Storage controllers”
- Look for “NVMe” or “Non-Volatile memory controller”
- If present, your system supports NVMe
Method 4: Physical Inspection
Windows: Device Manager → Disk drives → Google your current drive model
macOS: Apple Menu → About This Mac → System Report → NVMExpress or SATA
Physical: Remove bottom panel and look at the slot (M-key = NVMe, B+M key = SATA)
Or: Check your laptop’s manual or search “[laptop model] SSD upgrade”
For desktops: Power off and unplug, open the case, locate M.2 slots on motherboard (usually between CPU and first PCIe slot), check for labels indicating “M.2”, “NVMe”, or “PCIe/SATA”, note the key type (position of notch blocker), and count screw standoff positions to determine supported lengths.
For laptops: Power off, remove battery if possible, remove bottom panel (check manual for screws — some are hidden under rubber feet), locate existing storage, identify connector type and available space, and measure clearance for SSD thickness.
Laptop SSD Compatibility: Special Considerations
Laptop SSD upgrades have additional constraints beyond desktop systems. Here’s what to verify:
1. Is the SSD User-Replaceable?
Some modern laptops have soldered storage that cannot be upgraded:
- Most MacBooks (2016 and later)
- Microsoft Surface Laptop (earlier generations)
- Some ultra-thin Windows laptops
- Chromebooks (most models)
How to check: Search “[laptop model] SSD upgrade” on YouTube, check iFixit.com for teardown guides, or review the laptop’s specifications for “storage type”.
2. What Interface Does Your Laptop Support?
| Configuration | Description | Upgrade Options |
|---|---|---|
| 2.5″ SATA only | Traditional HDD bay | 2.5″ SATA SSD |
| M.2 SATA only | M.2 slot, SATA interface | M.2 SATA SSD (B+M key) |
| M.2 NVMe only | M.2 slot, NVMe interface | M.2 NVMe SSD (M-key) |
| M.2 SATA + NVMe | M.2 slot supports both | Either type works |
| 2.5″ SATA + M.2 | Both bays available | Can use both |
3. What Size M.2 Does Your Laptop Accept?
While 2280 is standard, some laptops have restrictions:
2230 only: Steam Deck, Microsoft Surface Pro (newer models), some Lenovo ThinkPad X1 Carbon models, Framework Laptop expansion cards
2280 standard: Most gaming laptops, most business laptops, most consumer laptops (2018+)
4. Check Height/Thickness Clearance
This is critical for laptops with tight internal spaces.
Standard M.2 SSD thickness: ~2.2mm (single-sided) to ~3.5mm (double-sided)
Safe choices for laptops:
- Samsung 990 Pro (single-sided, all capacities)
- WD Black SN7100 (single-sided)
- Samsung 990 EVO Plus (single-sided up to 4TB)
- Crucial T500 (single-sided up to 2TB)
PS5 SSD Compatibility Requirements
The PlayStation 5 has specific requirements for internal SSD expansion. Here’s everything you need to know:
Official Sony Requirements
Interface:
- Must be PCIe Gen 4 x4 NVMe SSD
- Gen 3 drives will work but may show performance warnings
- Gen 5 drives work but won’t be faster than Gen 4
Speed:
- Minimum: 5,500 MB/s sequential read
- Recommended: 5,500 MB/s or faster
- Slower drives may work but with potential performance warnings
Capacity:
- Minimum: 250 GB
- Maximum: 8 TB (as of latest firmware)
- Recommended: 1TB-2TB (best value)
Size Limits (including heatsink):
- Width: Up to 25mm
- Length: 30mm to 110mm
- Total height: Up to 11.25mm
- Height below board: Up to 2.45mm
- Height above board: Up to 8mm
Total height (SSD + heatsink) must not exceed 11.25mm.
Many PC heatsinks are too tall for PS5. Always verify heatsink compatibility before purchasing.
PS5 Slim and PS5 Pro note: Some heatsinks that fit the original PS5 don’t fit newer models. Verify compatibility with your specific console version.
Recommended PS5 SSDs
Samsung 990 Pro 2TB with Heatsink
7,450 MB/s Read | 6,900 MB/s Write | PCIe 4.0 x4 | V-NAND TLC | 1,200 TBW | Heatsink Included
The fastest Gen 4 SSD with an integrated heatsink designed for PS5. Samsung’s flagship delivers class-leading performance, excellent power efficiency, and proven reliability. Plug-and-play installation — no additional heatsink needed.
Samsung 990 Pro 2TB (No Heatsink)
7,450 MB/s Read | 6,900 MB/s Write | PCIe 4.0 x4 | V-NAND TLC | 1,200 TBW
Same flagship performance as above without the heatsink. Pair with a $10-15 aftermarket PS5 heatsink to save ~$25 over the heatsink version. Single-sided design fits all PS5 models including Slim and Pro.
WD Black SN850X 2TB
7,300 MB/s Read | 6,600 MB/s Write | PCIe 4.0 x4 | TLC NAND | 1,200 TBW
WD’s flagship gaming SSD with Game Mode 2.0 for predictive loading. Nearly identical real-world performance to Samsung 990 Pro. Excellent choice if you find it on sale — performance difference vs Samsung is negligible in gaming.
Crucial P5 Plus 2TB
6,600 MB/s Read | 5,000 MB/s Write | PCIe 4.0 x4 | TLC NAND | 1,200 TBW
Solid Gen 4 performance at a lower price point. Exceeds PS5’s 5,500 MB/s requirement comfortably. Great choice for budget-conscious buyers — game load times are virtually identical to faster drives. Requires separate heatsink for PS5.
Seagate FireCuda 530 2TB with Heatsink
7,300 MB/s Read | 6,900 MB/s Write | PCIe 4.0 x4 | TLC NAND | 2,550 TBW
Highest endurance rating (2,550 TBW) among consumer Gen 4 drives — over 2x the competition. Premium price, but ideal for users who write massive amounts of data. Heatsink included and PS5-certified.
Xbox Series X|S Storage Expansion
Xbox uses a proprietary storage expansion system — standard M.2 SSDs don’t work directly.
Official Seagate Storage Expansion Card
The only way to add internal-speed storage is the Seagate Storage Expansion Card:
- Proprietary CFexpress-based card
- Plugs into dedicated slot on back of console
- Matches internal SSD speed (2.4 GB/s)
- Available in 512GB, 1TB, and 2TB
- Premium pricing (~$150 for 1TB)
USB External Storage
You can use standard USB 3.0 external drives for:
- Storing Xbox Series X|S games (must transfer to internal to play)
- Playing Xbox One and older games directly
- General media storage
Note: Xbox Series X|S optimized games must run from internal storage or the Seagate Expansion Card — USB drives are for storage only.
Common Compatibility Mistakes to Avoid
Learn from others’ errors — these are the most frequent SSD compatibility mistakes:
Mistake 1: NVMe SSD in SATA-Only Slot
The problem: Buying an NVMe M.2 SSD for a laptop or motherboard that only supports M.2 SATA.
Why it happens: Both NVMe and SATA M.2 drives look similar and often fit the same slot physically.
The result: SSD not detected, complete waste of money unless you can return it.
How to avoid: Always verify your slot supports NVMe before buying an NVMe drive.
Mistake 2: Wrong M.2 Size
The problem: Buying a 2280 SSD for a device that only accepts 2230.
Why it happens: 2280 is by far the most common size, so people assume it’s universal.
The result: SSD physically doesn’t fit.
How to avoid: Check your device specifications. Steam Deck, Surface Pro, and some ultrabooks require 2230.
Mistake 3: Double-Sided SSD in Thin Laptop
The problem: Buying a high-capacity double-sided SSD for a laptop with limited clearance.
Why it happens: Manufacturers don’t always prominently advertise single vs double-sided.
The result: SSD doesn’t fit, may damage components if forced, or causes overheating.
How to avoid: Specifically look for single-sided drives or check clearance measurements.
Mistake 4: Expecting Full Gen 5 Speed on Gen 4 System
The problem: Buying a Gen 5 SSD expecting premium performance on a Gen 4 motherboard.
Why it happens: Backwards compatibility is real, but speed is limited.
The result: Paying premium prices for Gen 5 but getting Gen 4 performance.
How to avoid: Match SSD generation to your system, or only buy ahead if you’re upgrading soon.
Mistake 5: Forgetting About Heatsinks for PS5
The problem: Buying an SSD for PS5 without accounting for heatsink requirements.
Why it happens: Many SSDs don’t include heatsinks; PS5 needs one.
The result: Either need to buy heatsink separately (adds cost) or risk thermal throttling.
How to avoid: Buy SSD with included heatsink for PS5, or budget for aftermarket heatsink.
Mistake 6: Buying SATA When NVMe is Supported
The problem: Buying an M.2 SATA SSD when your system supports NVMe.
Why it happens: SATA is cheaper, people don’t realize what they’re giving up.
The result: Missing out on 7-10x speed improvement for minimal savings.
How to avoid: If your system supports NVMe, buy NVMe — price difference is now minimal.
SSD Not Detected? Troubleshooting Guide
If your new SSD isn’t showing up, work through these steps:
Step 1: Verify Physical Installation
- SSD fully inserted at correct angle (usually 30-45°)
- Retaining screw installed and snug (not overtightened)
- Gold contacts clean and making full contact
- No bent pins in the slot
Step 2: Check BIOS Detection
- Restart computer and enter BIOS (Del, F2, or F12 during boot)
- Navigate to Storage or Boot configuration
- Look for your SSD in the drive list
- If visible in BIOS but not Windows, skip to Step 4
If not visible in BIOS: Interface mismatch (NVMe in SATA-only slot), slot not enabled in BIOS settings, faulty SSD or slot, or PCIe lane conflict.
Step 3: Update BIOS
Older BIOS versions may not support newer SSDs:
- Note your current BIOS version (shown in BIOS or msinfo32)
- Visit motherboard manufacturer’s website
- Download latest BIOS update
- Follow manufacturer’s update procedure carefully
- Retry SSD detection
BIOS updates carry risk. A failed update can brick your motherboard.
– Never interrupt a BIOS update
– Use a wired power connection (laptops)
– Follow manufacturer instructions exactly
– Only update if necessary for compatibility
Step 4: Initialize Drive in Windows
New SSDs must be initialized before use:
- Press Windows + X → Disk Management
- Look for “Unknown” or “Not Initialized” disk
- If prompted, choose GPT (for drives over 2TB or UEFI systems)
- Right-click unallocated space → New Simple Volume
- Follow wizard to format and assign drive letter
Step 5: Check for Driver Issues
- Device Manager → Look for yellow warning icons
- If SSD shows with error, right-click → Update driver
- Or try uninstalling device and restarting
- For NVMe: Try manufacturer’s NVMe driver if available
When to RMA
Return the SSD if:
- Physical damage visible
- Doesn’t work in any system
- Detected but shows errors in manufacturer diagnostic tool
- SMART data shows pre-failure condition
Compatibility Quick Reference Charts
Use these charts for fast compatibility checking:
Interface Compatibility Matrix
| SSD Type | 2.5″ SATA Bay | M.2 SATA Slot | M.2 NVMe Slot | M.2 Combo Slot |
|---|---|---|---|---|
| 2.5″ SATA SSD | ✓ | ✗ | ✗ | ✗ |
| M.2 SATA SSD | ✗ | ✓ | ✗ | ✓ |
| M.2 NVMe SSD | ✗ | ✗ | ✓ | ✓ |
Form Factor Quick Reference
| Device Type | Common Form Factor | Interface |
|---|---|---|
| Desktop PC (new) | M.2 2280 | NVMe |
| Desktop PC (old) | 2.5″ SATA | SATA |
| Gaming Laptop | M.2 2280 | NVMe |
| Ultrabook | M.2 2280 (single-sided) | NVMe |
| Steam Deck | M.2 2230 | NVMe |
| Surface Pro | M.2 2230 | NVMe |
| PS5 | M.2 2280 + heatsink | NVMe Gen 4+ |
| Older Laptop | 2.5″ SATA | SATA |
Speed Reference
| Connection | Max Speed | Typical Real-World |
|---|---|---|
| SATA III | 600 MB/s | 550 MB/s |
| NVMe Gen 3 x4 | 4,000 MB/s | 3,500 MB/s |
| NVMe Gen 4 x4 | 8,000 MB/s | 7,000 MB/s |
| NVMe Gen 5 x4 | 16,000 MB/s | 12,000 MB/s |
| NVMe Gen 4 x2 | 4,000 MB/s | 3,500 MB/s |
Your SSD Compatibility Checklist
Before buying any SSD, verify these five factors:
- Interface: Does your system support SATA, NVMe, or both?
- Form Factor: What size does your slot accept? (2.5″, M.2 2280, M.2 2230, etc.)
- Key Type: Does your M.2 slot key match the SSD key?
- PCIe Generation: What’s the maximum speed your system supports?
- Physical Fit: Is there enough clearance for your chosen SSD (especially laptops and PS5)?
When in doubt: Check your motherboard/laptop manual, use Crucial’s System Scanner, search “[your device model] SSD upgrade” for real-world examples, or ask in r/buildapc or manufacturer forums.
With these checks complete, you can confidently purchase an SSD knowing it will work with your system.
Frequently Asked Questions
No. Your laptop must have a compatible slot (M.2 or 2.5″ SATA bay), support the interface (SATA or NVMe), and have enough physical space. Check your laptop’s specifications or manual before purchasing.
Yes. PCIe is backwards compatible. A Gen 4 SSD will work in a Gen 3 slot but will be limited to Gen 3 speeds (~3,500 MB/s instead of ~7,000 MB/s).
No. NVMe and SATA use different protocols. An NVMe SSD will not work in a SATA-only slot, even if it physically fits.
Check your motherboard manual. M-key slots usually support NVMe. B-key or B+M key slots are often SATA-only. Some slots support both — verify in documentation.
For PC use, it depends on the SSD and your case airflow. High-performance Gen 4/5 drives benefit from cooling. For PS5, Sony recommends a heatsink. Most motherboards include M.2 heatsinks.
If the interface is incompatible, the SSD won’t be detected. If the size is wrong, it won’t physically fit. Neither situation damages components — but you’ll need to return the SSD.
Most MacBooks from 2016 onward have soldered storage that cannot be upgraded. Older MacBooks (2012-2015) may have upgradeable SSDs — check iFixit for your specific model.
M-key has a notch on the right side and supports PCIe x4 (NVMe). B-key has a notch on the left and supports SATA and PCIe x2. B+M key has both notches for maximum compatibility (usually SATA drives).
New SSDs must be initialized in Disk Management before use. Press Windows + X → Disk Management, find the new disk (shown as “Unknown” or “Not Initialized”), initialize it, then create a new volume to assign a drive letter.
No. M.2 SSDs come in sizes 2230, 2242, 2260, 2280, and 22110. The numbers indicate width × length in mm. 2280 (22mm × 80mm) is the most common, but devices like Steam Deck and Surface Pro require 2230.
Yes, Gen 5 SSDs work in PS5, but they won’t be faster than Gen 4 — PS5 maxes out at Gen 4 speeds. You’ll pay more for Gen 5 with no performance benefit. Stick with Gen 4 drives for best value.
250GB: Minimal, OS and a few applications only. 500GB: Adequate for most users. 1TB: Recommended for gamers and general use. 2TB+: Content creators, large game libraries, professional work.
Related SSD Guides
- All NVMe SSDs — Browse NVMe prices sorted by $/TB
- All SATA SSDs — Browse SATA prices sorted by $/TB
- Best SSD for Laptop — Laptop upgrade guide
- Best SSD for PS5 — PlayStation 5 expansion guide
- Samsung SSD Guide — Complete Samsung lineup
- WD SSD Guide — Complete Western Digital lineup
- NVMe vs SATA — Which should you buy?
- Best SSD for Gaming — Gaming SSD recommendations
Last Updated: February 2026 | Compatibility information verified against current specifications
